FAIL OF THE YEAR

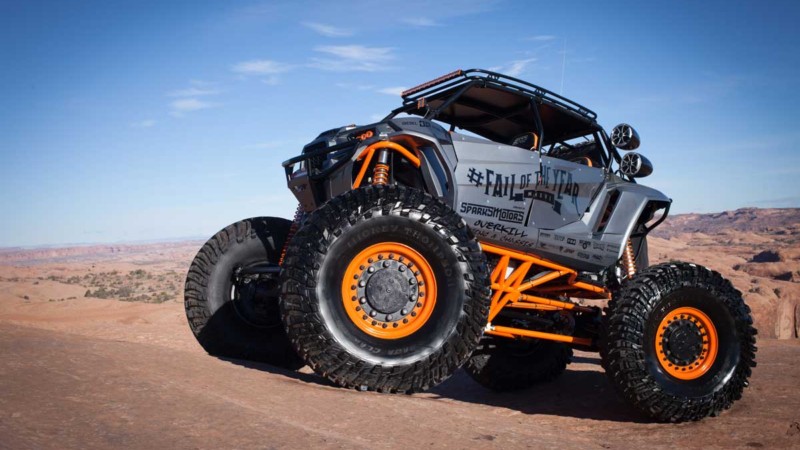

To locate and handle the massive axles, we needed to build a massive subframe. So naturally, we called in Joel and the team from Overkill Racing and Chassis. What they constructed needs to be seen to truly be appreciated. This one of a kind subframe bolts directly onto the chassis of the stock 2016 RZR. This means that with a little effort you could always take this machine back to its stock form (but why would you ever want to?).

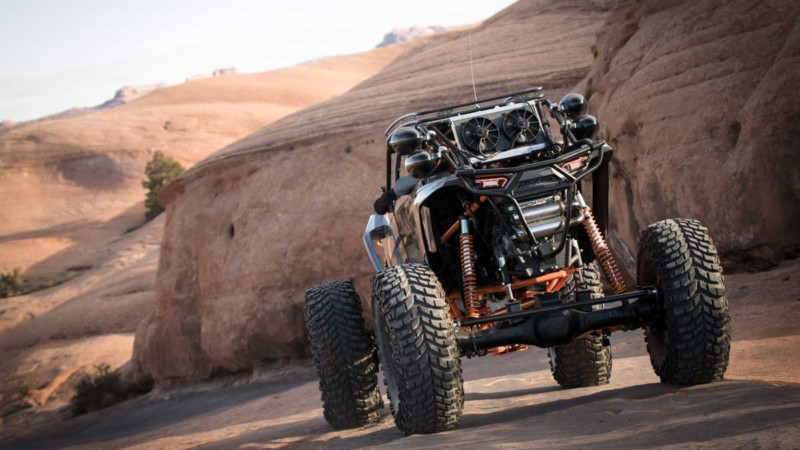

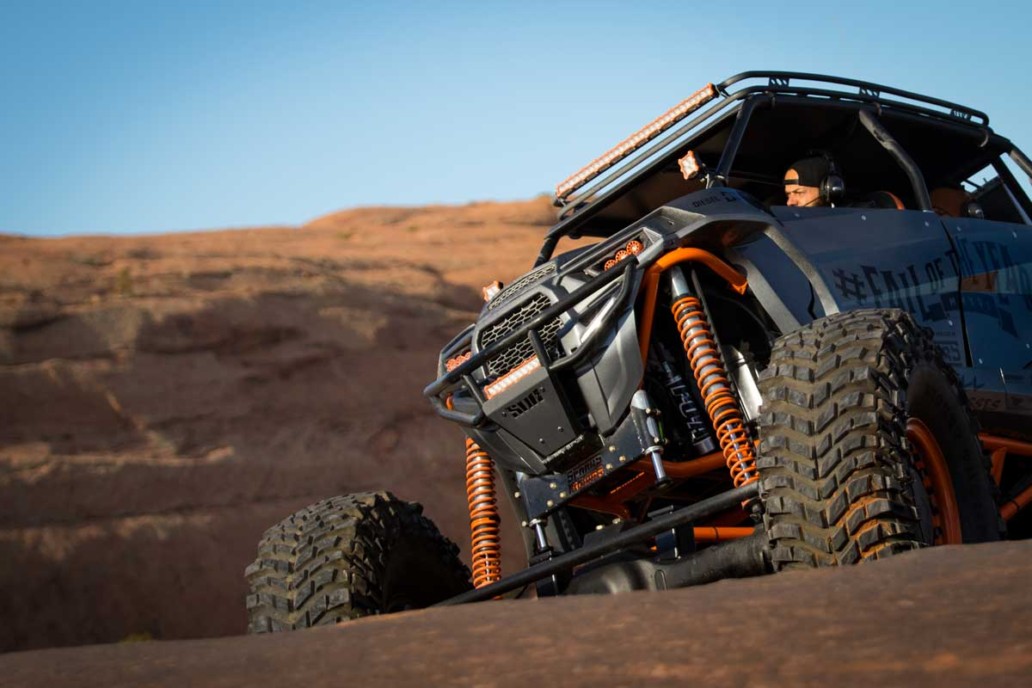

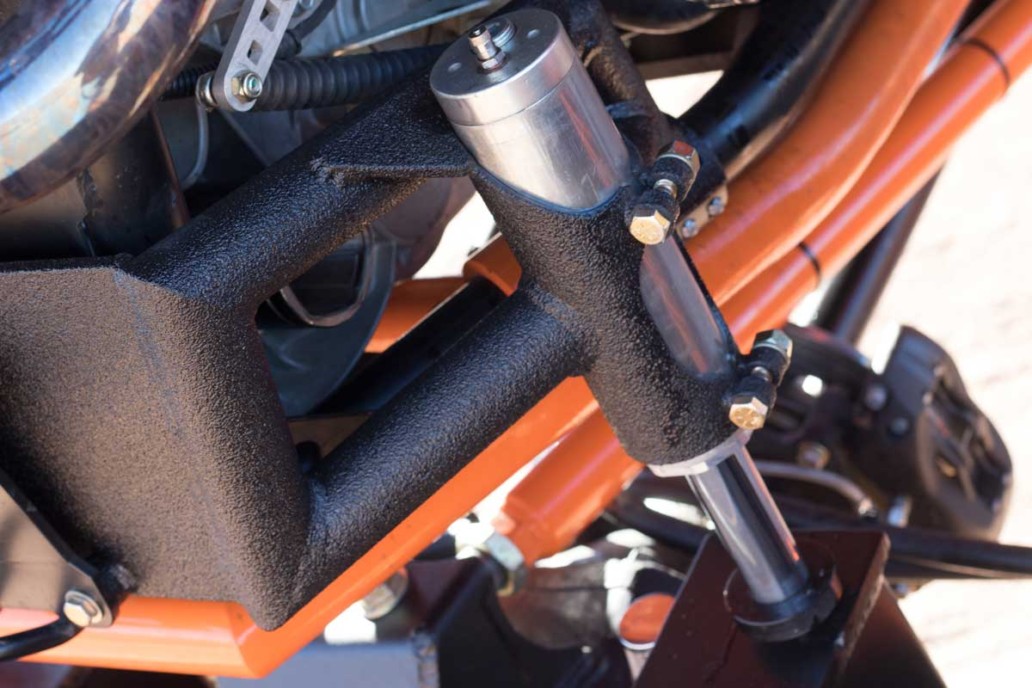

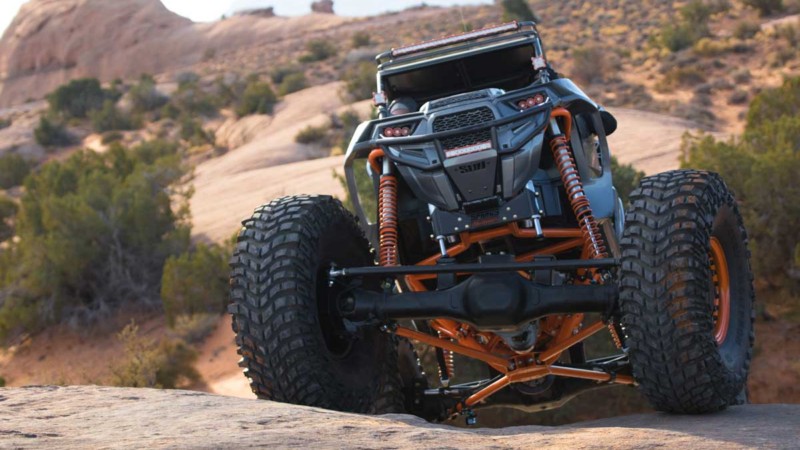

The axles are located under the subframe via 4-link suspension, kept in check with the FOA 2.5″ coilovers and hydraulic bump stops. At each end of each axle sits massive 54″ tall Mickey Thompson TTC tires that are made for crushing any terrain. Turning is accomplished via an electric hydraulic pump that is housed in the subframe and provides hydraulic pressure to the rams that turn both the front and rear axles. Stopping is done with pinion brakes, featuring Wilwood calipers on both the front and rear drivelines, providing more than enough halting power for those massive tires.

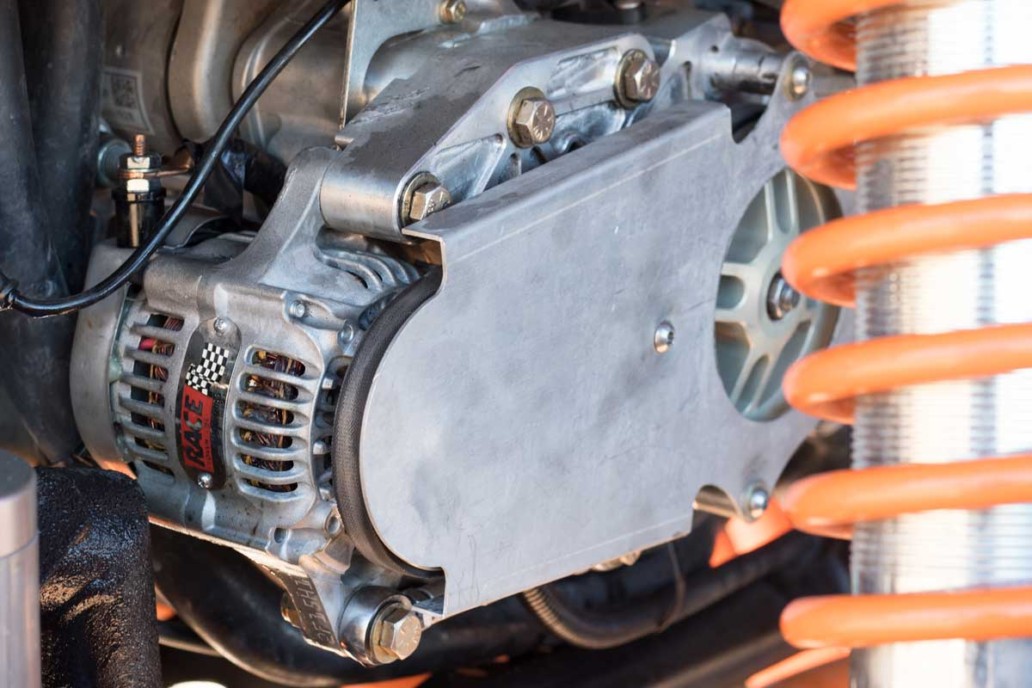

To keep up with the power demand needed by the steering system, we installed a UTV Inc. alternator kit that stores power in two massive Odyssey batteries.

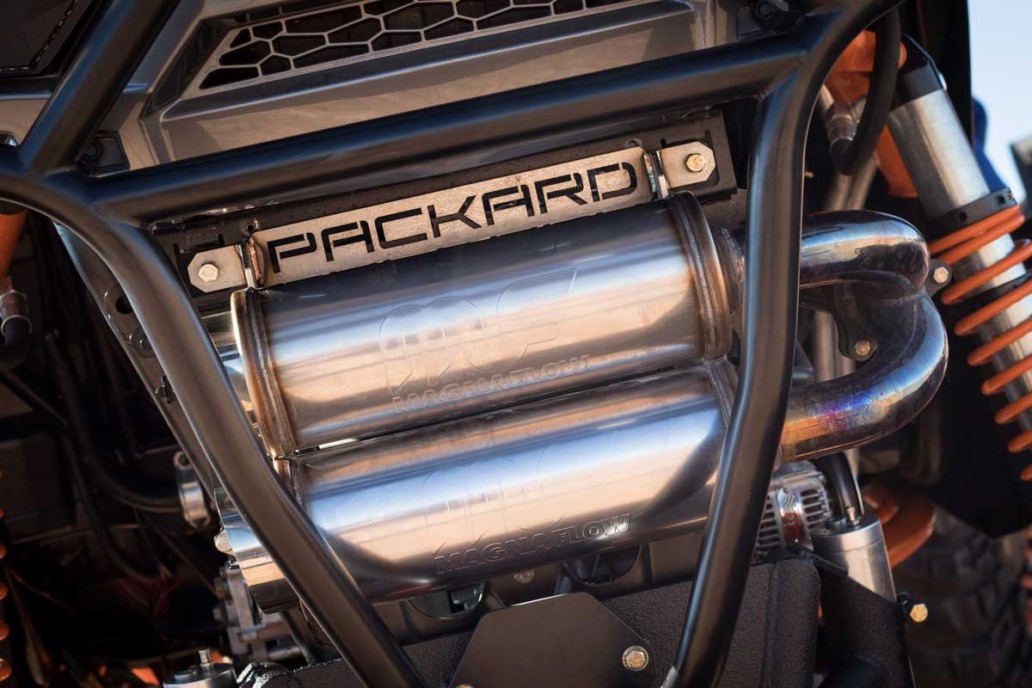

The Turbo RZR provides an astonishing amount of power in its stock form, but since we were going far from stock, we wanted to bump that power up as much as possible. Packard Performance is your one stop shop for UTV high performance builds, so we had the guys come down and throw on a bigger turbo, exhaust and exclusive tune just for us. Only the best.

The biggest factor we needed to overcome with this build was power (and its delivery). The guys at SCS really came through with a custom-built drop case that would take the power from the front drive output of the stock machine, reduce the gear ratio, split the power in two, and send it down the line to the MRAP Axle Tech 4000 axles. It’s simple engineering.

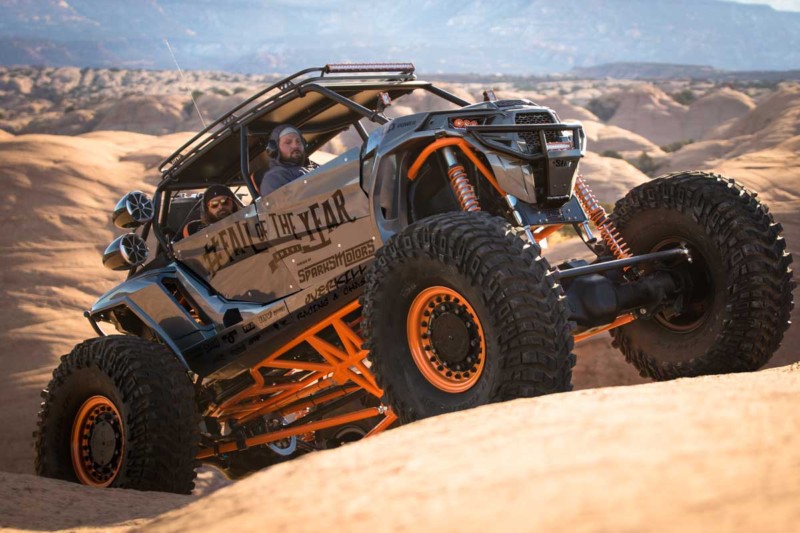

GlazzKraft is currently the only company offering legit fiberglass bodies for UTV’s and rightfully so. These body kits are gorgeous and are a huge improvement over the stock appearance. The SDR doors and the GlazzKraft kit turned out to be a match made in heaven. They look as if they were designed for each other. The kit and doors were sanded smooth and sent over to our paint booth for a coat of Heavy D’s favorite shade of grey.

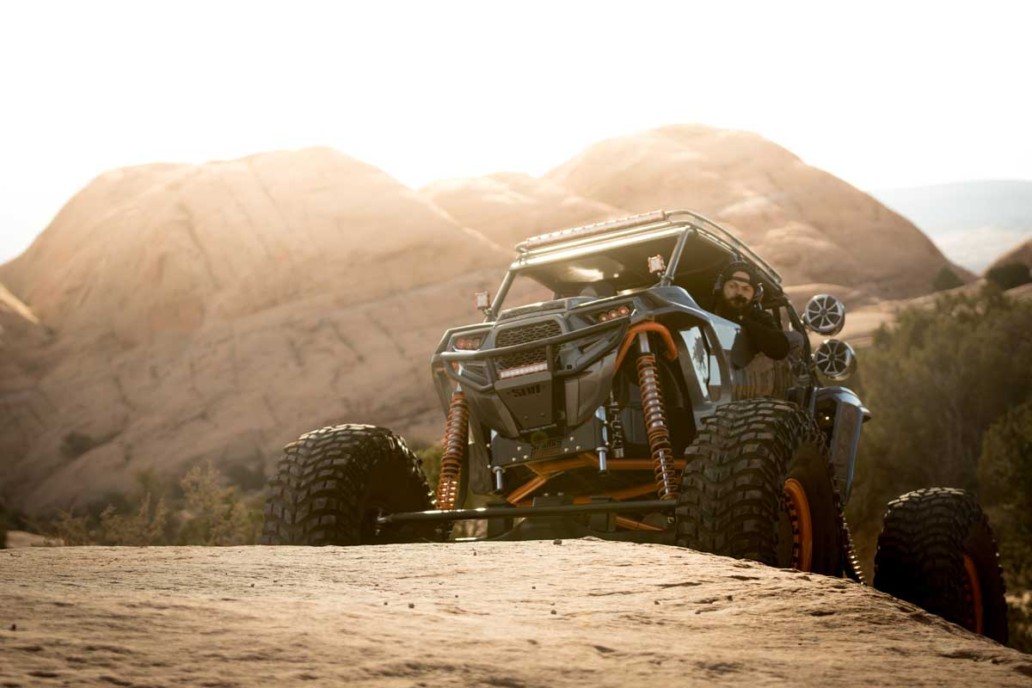

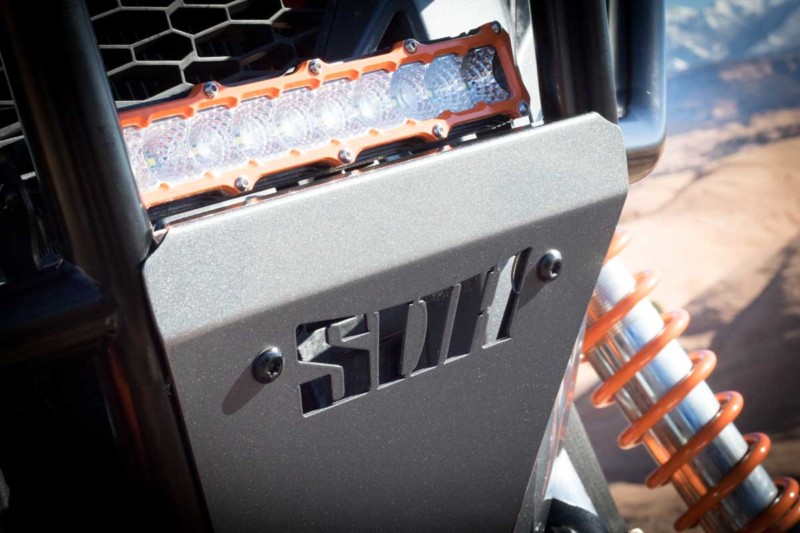

Since we knew this thing would be seeing time in the rocks and diverse landscapes around Utah, we added an SDR front bumper, UTV Inc. cage, and UTV Inc. rear bumper – keeping that body kit safe and sound.

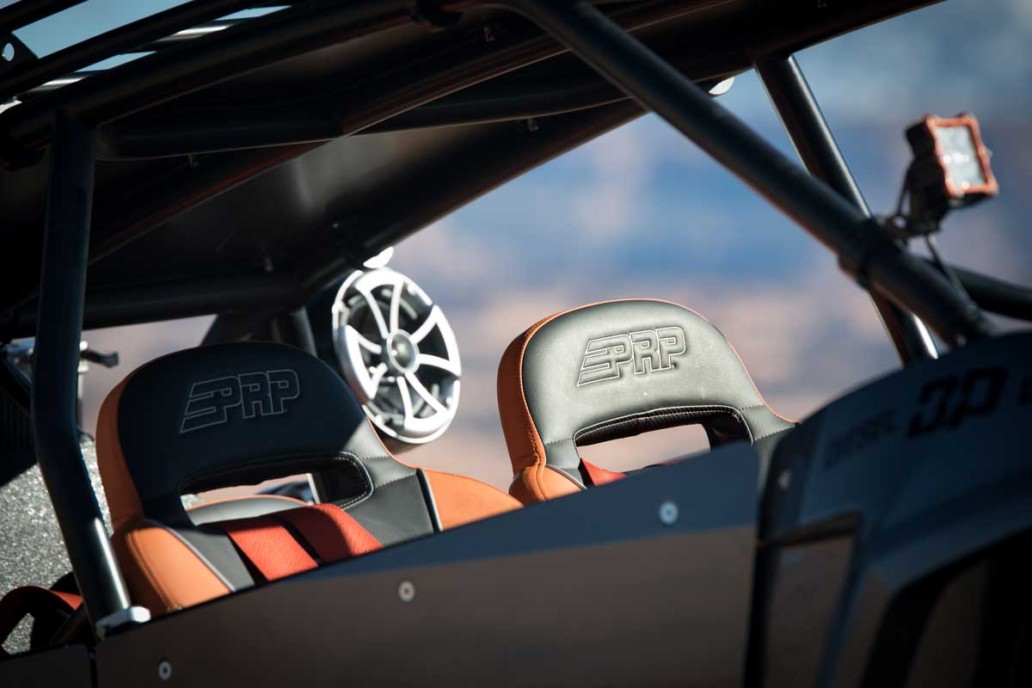

Inside, we ditched the stock seats for more comfortable PRP G.T’s and PRP 3″ 4- point harnesses keeping you locked in place no matter how rough the conditions.  We threw in a Rockford Fosgate receiver and WetSounds tower speakers to bring the party wherever we go.

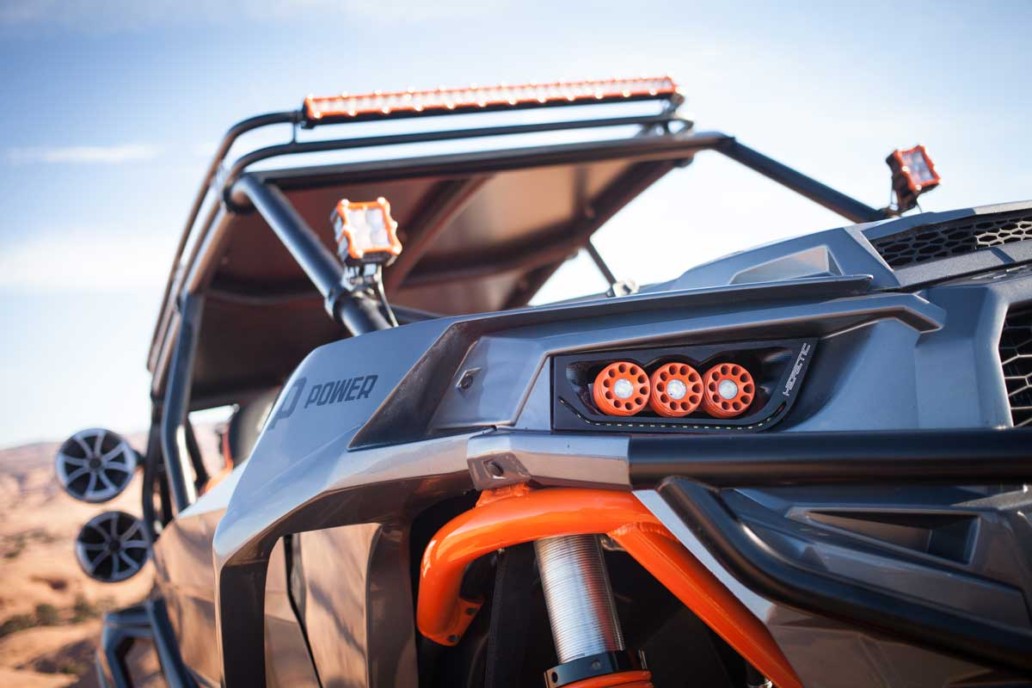

Heretic Studios rounds out the build with LED projector headlights, Billet taillights, LED cubes on the A-pillars and two LED bars. It’s safe to say that seeing after the sun goes down wont be an issue.

So what do you think? Total fail? Or Total WIN?
